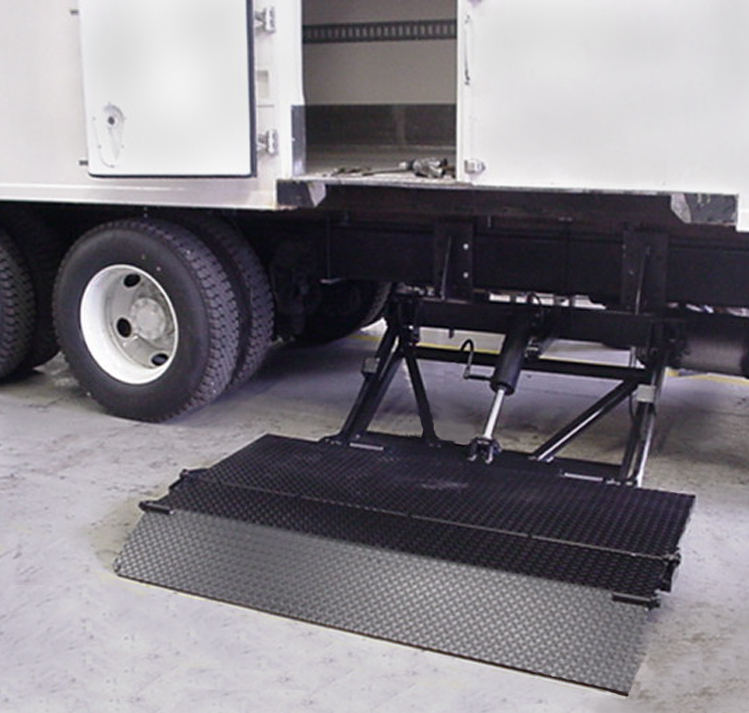

TSG Hide-A-Way® Side Lift
Truck Side Door Lift Gate
Floor Height: 44″ Laden to 56″ Unladen
Standard Features
Power pack enclosure holds pump and motor • Potted marine toggle switch operation • Leyman Extreme Shield • Greaseless bushings • Spring assisted opening and closing • Manual transit lock • Power line 27’ “2” gauge
|
Model Number |
Lifting Capacity |
Platform Size |
Main Platform |
Secondary Platform |
Ramp |
Vehicle Width |
Approx. Weight |
|
TSG 2500 |
2,500 lbs. |
72”W x 34”D |
23”D |
11”D |
Butt-end |
NA |
780 lbs. |
|
TSG 2500 |
2,500 lbs. |
72”W x 34”D |
23”D |
11”D |
8” Taper |
NA |
780 lbs. |
|
TSG 2500 |
2,500 lbs. |
54”W x 34”D |
23”D |
11”D |
Butt-end |
NA |
750 lbs. |
|
TSG 2500 |
2,500 lbs. |
54”W x 34”D |
23”D |
11”D |
8” Taper |
NA |
750 lbs. |
|
TSG 1850 |
1,850 lbs. |
72”W x 34”D |
23”D |
11”D |
Butt-end |
NA |
755 lbs. |
|
TSG 1850 |
1,850 lbs. |
72”W x 34”D |
23”D |
11”D |
8” Taper |
NA |
755 lbs. |
|
TSG 1850 |
1,850 lbs. |
54”W x 34”D |
23”D |
11”D |
Butt-end |
NA |
725 lbs. |
|
TSG 1850 |
1,850 lbs. |
54”W x 34”D |
23”D |
11”D |
8” Taper |
NA |
725 lbs. |
Option Number | Description |
111 | Circuit breaker for pump motor |
143 | Safety cut off switch |
212 | Drivers step |
213 | 12” retention ramp (steel) |
214 | Maintenance Minder2® |
P46622 | AGM Battery |
Power Option Number | Power Option Description |
136 | Power Kit: 35’ “2” gauge cable and material to secure two (2) batteries, trailer plug NOT included |
148 | Power line 15’ “2” gauge |
