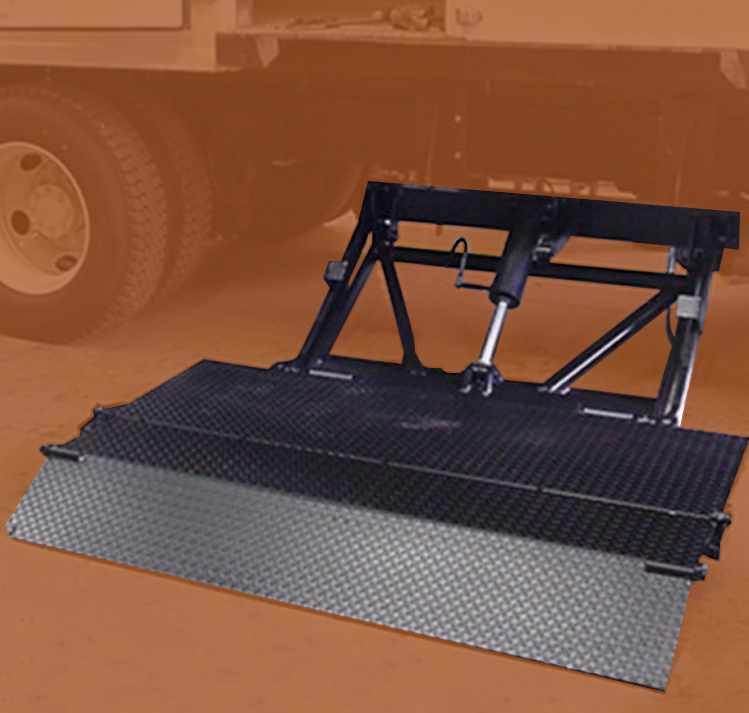

SUPERIOR™ / TSG
Hide-A-Way® Truck Side Lift
The SUPERIOR™ TSG Side Lift Gate is engineered for demanding applications that demand strength, reliability, and long-term performance. Built with rugged construction and smooth hydraulic operation, the SUPERIOR™ delivers dependable lifting power while helping reduce downtime and maintenance. Designed for high-cycle delivery environments, it keeps beverage, foodservice, and distribution fleets operating safely and efficiently.
| SUPERIOR™ TSG Standard Features | Benefits |
|---|---|
|
True Level Ride Lift Gate |
Provides a Safer Working Environment for Driver and Freight |
|
Manual Transit Lock |
Safely Secures Lift Gate in Over-the-Road Position |
|
Power Pack Enclosure |
Houses Hydraulic Pump |
|
Marine Potted Switches |
Watertight Switches – Reduces Electrical Failure |
|
Spring Assisted Opening and Closing |
Ease of Use and Reduces Physical Effort to Operate |
|
Greaseless Bushings |
Reduces Maintenance Costs |
Lifting Capacity – 3,000 lbs – Floor Heights: 44″ Laden to 56″ Unladen
| Model Number | Lifting Capacity | Platform Size | Main Platform | Secondary Platform | Approximate Weight |
|---|---|---|---|---|---|
|
Superior™ TSG 3000 |
3,000 lbs |
54″Wx34″D |
23″D |
11″D |
800 lbs |
|
Superior™ TSG 3000 |
3,000 lbs |
72″Wx34″D |
23″D |
11″D |
830 lbs |
| Option Number | OPtion Description |
|---|---|
|
111 |
Additional Circuit Breaker for Supply Line |
|
143 |
Safety Cut Off Switch (In Cab) |
|
201 |
Handheld Remote, Plugs into Receptacle |
|
212 |
Drivers Step |
|
213 |
12″ Retention Ramp (Steel) |
|
214 |
Maintenance Minder2 |
|
GV |
Galvanized (Full Gate) |
| Option Number | Option Description |
|---|---|
|
125-NG |
Power Kit: 27’ “2” Gauge Cable – NO Trailer Plug |
