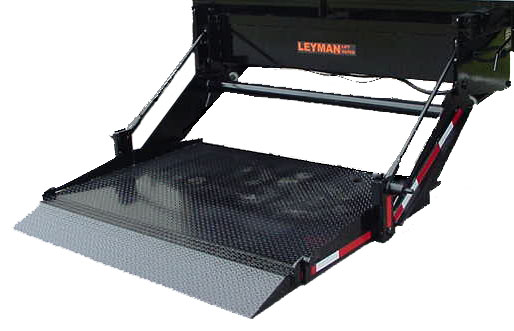

TLS Hide-A-Way® Side Lift
Trailer Side Door Lift Gate
Floor Height: 48″ Laden to 58″ Unladen
NOTE:
Installs without cutting side rails up to 10″
Standard Features
Gravity down • Maintenance Minder2® • Rollers and lifting cyclinders at pivot have grease fi ttings • Automatic over the road lock • Potted marine toggle switch operation • Power in and out with stainless steel chain • Adjustable guides (in and out function) • Power pack holds pump, motor, and room for four (4) batteries on 60”/72” W platform & two (2) batteries on 42″/48“ W platform
Model Number | Lifting Capacity | Platform Size | Main Platform | Secondary Platform | Ramp | Vehicle Width | Approx. Weight |
TLS 4500 | 4,500 lbs | 42”W x 55”D | 51”D | 4″D | 10” Taper | NA | 1,250 lbs |
TLS 4500 | 4,500 lbs | 48”W x 55”D | 51”D | 4″D | 10” Taper | NA | 1,350 lbs |
TLS 4500 | 4,500 lbs | 60”W x 55”D | 51”D | 4″D | 10” Taper | NA | 1,500 lbs |
TLS 4500 | 4,500 lbs | 72”W x 55”D | 51”D | 4″D | 10” Taper | NA | 1,650 lbs |
TLS 3500 | 3,500 lbs | 42”W x 55”D | 51”D | 4″D | 10” Taper | NA | 1,200 lbs |
TLS 3500 | 3,500 lbs | 48”W x 55”D | 51”D | 4″D | 10” Taper | NA | 1,300 lbs |
TLS 3500 | 3,500 lbs | 60”W x 55”D | 51”D | 4″D | 10” Taper | NA | 1,450 lbs |
TLS 3500 | 3,500 lbs | 72”W x 55”D | 51”D | 4″D | 10” Taper | NA | 1,600 lbs |
| Option Number | Description |
| 111 | Additional Circuit Breaker for Pump Motor |
| 133 | Conversion Kit For Mounting to Aluminum Cross Members |
| 134 | Mud Flap |
| 142 | Dual Power Unit |
| 154 | Reflecting Tape |
| 155 | High Visibility Flashing Safety Lights along Lift Gate Arm, Nose Warning Light |
| 183 | Handheld Remote Inside Power Unit Enclosure |
| 261 | Emergency Hand Pump |
| 265 | Power Unit Box Work Light |
| 268 | Collapsible Safety Hand Rails** Kit For Mounting to Aluminum Cross Members |
| ES | Extreme Shield |
GV | Galvanized (Full Gate) |
GVP | Galvanized (Platform Only) |
P46622 | AGM Battery |
| Power Option Number | Power Option Description | |
| 121-NG | Power Kit: 45′ “2” Gauge Cable – NO Trailer Plug | |
| 122-NG | Power Kit: 45′ “2” Gauge Cable – with Trailer Plug | |
| 136-NG | Power Kit: 35’ “2” Gauge Cable – NO Trailer Plugin | |
| 137-NG | Power Kit: 35′ “2” Gauge Cable – with Trailer Plug | |
| 164-NG | Power Kit: 45′ “2” Gauge Cable Dual Pole ONLY with Trailer Plug | |
| 257-NG | Power Kit: 45′ “2” Gauge Cable – Dual Pole with Combo Box (Dual/Single Pole Receptacles) | |
| 269-2B | Battery Hold-Down Kit – 2 Batteries for 42, 48, 60, 72, 80 Gate Width | |
| 269-3B | Battery Hold-Down Kit – 3 Batteries for 60, 72, 80 Gate Width | |
| 269-4B | Battery Hold-Down Kit – 4 Batteries for 72, 80 Gate Width |
