Hide-A-Way®
Tuckunder Lift

Lifting Capacity – Up to 3,500 lbs

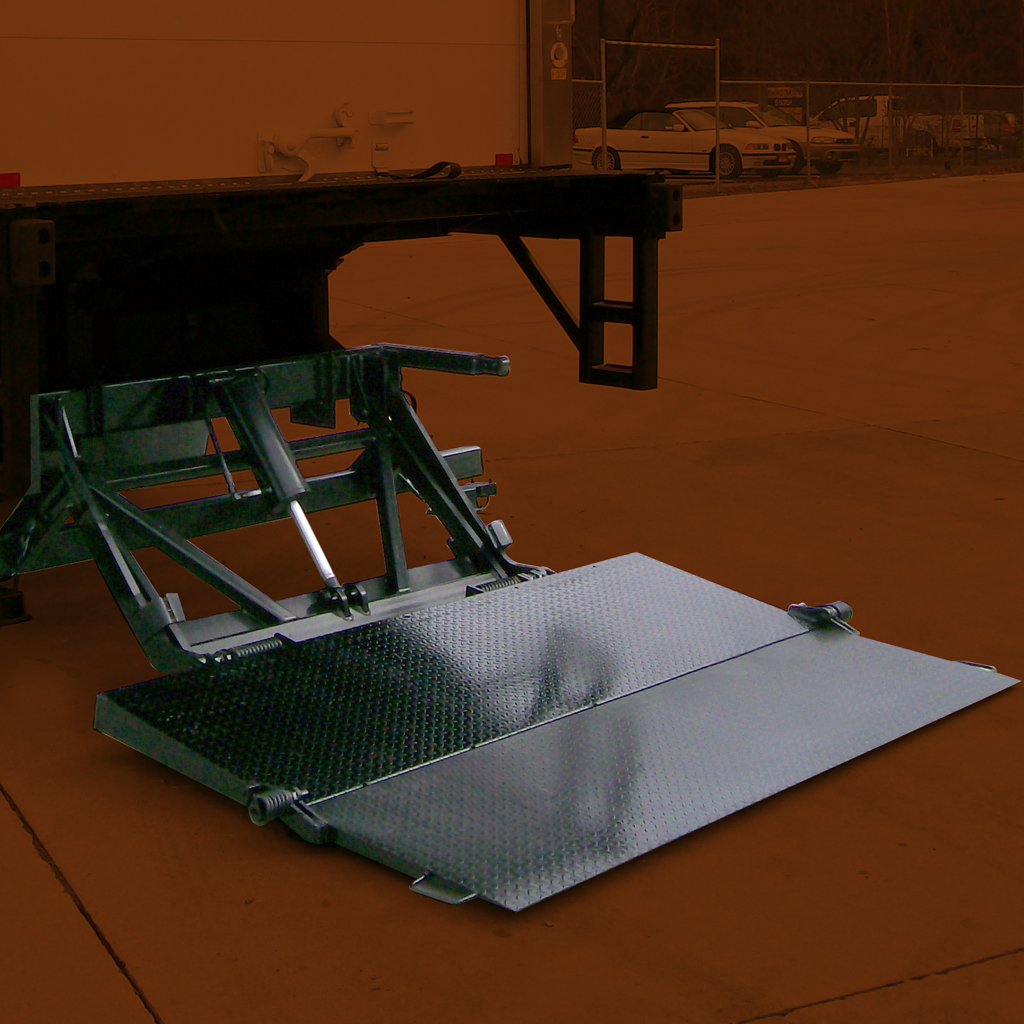

Steel Wedge Tuckunder Lift Gate

SLP Standard Features Benefits

1" Solid Steel Lifting Arms

Heavy-Duty and Built to Last

Low P.S.I Due to Larger Piston Area
Lower Pressure Reduces Wear, Extends Motor Life
Manual Transit Lock
Safely Secures Lift Gate in Over-the-Road Position

Pressure Compensated Flow Control

Steady Hydraulic Pressure for Smooth Operation

Bolt-On Power Pack Enclosure Holds Pump and Motor

Easy Installation

Marine Potted Switches

Watertight Switches – Reduces Electrical Failure

Spring Assisted Opening and Closing

Ease of Use and Reduces Physical Effort to Operate

Greaseless Bushings

Reduces Maintenance Costs

Model Number Lifting Capacity Platform Size Primary Platform Secondary Platform Approximate Weight Vehicle Width Vehicle Height

SLP 2500WLB

2,500 lbs

80"Wx50"D

25" D

25" D

925 lbs

96" x 102"

36" Laden to
44" Unladen

SLP 2500W

2,500 lbs

80"Wx52"D

27" D

25" D

925 lbs

96" x 102"

45" Laden to
56" Unladen

SLP 3500W

3,500 lbs

80"Wx50"D

27" D

25" D

975 lbs

96" x 102"

45" Laden to
56" Unladen

Option Number OPtion Description

111

Additional Circuit Breaker for Supply Line

132-3PL

Plastic Battery Box with Hold Down Straps (Holds Three Batteries)

143

Conversion Kit For Mounting to Aluminum Cross Members

145

Rubber Dock Bumpers

158

Power down for Hide-A-Way®

169

I.C.C. Bumper D.O.T. Approved

201

Hand Held Remote Control, Plugs into Receptacle

214

Maintenance Minder2

215

96" Floor Extension

216

102" Floor Extension

225

Threshold Mounting Tube

233

Heavy Duty Steps

CA-800-545

Cart Stop

P46622

AGM Battery

GV

Galvanized (Full Gate)

GVP

Galvanized (Platform Only)

Option Number Option Description

121-NG

Power Kit: 45' “2” Gauge Cable – NO Trailer Plug

122-NG

Power Kit: 45' “2” Gauge Cable – with Trailer Plug

123-NG

Power Kit: 30' “2” Gauge Cable – NO Trailer Plug

124-NG

Power Kit: 30' “2” Gauge Cable – with Trailer Plug

125-NG

Power Kit: 27’ “2” Gauge Cable – NO Trailer Plug

136-NG

Power Kit: 35’ “2” Gauge Cable – NO Trailer Plug

137-NG

Power Kit: 35' “2” Gauge Cable – with Trailer Plug

164-NG

Power Kit: 70' “0” gauge cable dual pole – with trailer plug

227-NG

Power Kit: 60' “0” Gauge Cable – with Trailer Plug

232-NG

Power Kit: 53' “0” Gauge Cable – with Trailer Plug

Contact us for more information:
