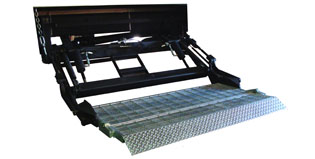

LTS Hide-A-Way® Side Lift
Truck Side Door Level Ride Platform
Floor Height: 45″ Laden to 56″ Unladen
NOTE:
10″ of clearance for the rubrail
No alterations to truck body required
Standard Features
Power pack enclosure houses pump and motor • Standard locking valves • Built in adjustable step • Grease fittings at pivot points • Power down • Spring and damper assisted opening/closing • Potted marine toggle switch operation • Power line 27’ 2 gauge • Gate shipped completely pre-assembled • Bar grated galvanized steel platform • Leyman Extreme Shield
Model Number | Lifting Capacity | Platform Size | Ramp | Vehicle Width | Approx. Weight |
LTS 2000 | 2,000 lbs | 60”W x 32”D | 10” Taper | NA | 825 lbs. |
Option Number | Description |
111 | Circuit breaker for pump motor |
143 | Safety cut off switch |
214 | Maintenance Minder2® |
Power Option Number | Power Option Description |
136 | Power Kit: 35’ “2” gauge cable, trailer plug NOT included |
|
|
