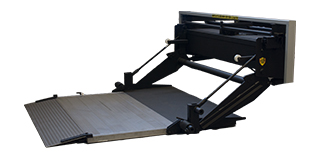

LPR Hide-A-Way® Rear Lift
Trailer Rear Door Level Ride Platform
Floor Height: 58″ Maximum
Floor Height: 58″ Maximum
NOTE:
Gate works with 102″ wide trailers ONLY
75.25″D clearance needed behind rear wheels
Standard Features
Gravity down • Maintenance Minder2® • Power pack enclosure houses: pump, motor, and room for four (4) batteries Adjustable guides (in/out – side/side functions) • Leyman Extreme Shield • Power in and out with stainless steel chain Primary platform at stored position meets D.O.T. strength & energy absorption requirements for U.S. and Canada Greaseless bushings & rollers and lifting cyclinders at pivot have grease fi ttings • Adjustable out/up stops Spring assisted opening and closing for secondary platform • Potted marine toggle switch operation
Gate works with 102″ wide trailers ONLY
75.25″D clearance needed behind rear wheels
Standard Features
Gravity down • Maintenance Minder2® • Power pack enclosure houses: pump, motor, and room for four (4) batteries Adjustable guides (in/out – side/side functions) • Leyman Extreme Shield • Power in and out with stainless steel chain Primary platform at stored position meets D.O.T. strength & energy absorption requirements for U.S. and Canada Greaseless bushings & rollers and lifting cyclinders at pivot have grease fi ttings • Adjustable out/up stops Spring assisted opening and closing for secondary platform • Potted marine toggle switch operation
Specifications
Options
Power Kits
Specifications
Model Number | Lifting Capacity | Platform Size | Main Platform | Secondary Platform | Ramp | Vehicle Width | Approx. Weight |
LPR 4500 | 4,500 lbs | 80”W x 72”D | 32”D Steel | 40″D Aluminum | 16″ Retention | 102″ | 1,825 lbs |
Options
Option Number | Description |
103 | Handheld remote with storage box |
111 | Circuit breaker for pump motor |
113 | 28”W x 20”D aluminum retention ramp curbside |
133 | Conversion kit for mounting to aluminum cross members |
134 | Mud flap |
154 | Reflecting tape |
155 | Flashing safety lights/platform lights |
184 | Emergency hand pump |
P46622 | AGM Battery |
Power Kits
Power Option Number | Power Option Description |
164-70 | Power Kit: 70’ “0” gauge cable dual pole – with trailer plug |
241 | Power Kit: 70’ “0” gauge cable – with trailer plug |
