Fold-A-Vador
EXTREME DUTY

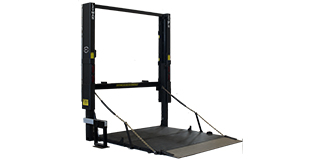

Rail Gate
HEAVIEST LIFTING CAPACITY IN THE INDUSTRY – 4,500 TO 6,800 LBS
Steel Platform Rail Gate Floor Heights: 40″ Laden to 56″ Unladen
| FXD Standard Features | benefits |
|---|---|
|
True Level Ride Lift Gate |
Provides a Safer Working Environment for Driver and Freight |
|
Dual Power Unit |
Designed to Reduce Road Calls |
|
Power Down on Demand |
Offers Options to Lower Platform |
|
Walk Around Remote Control |
Added Flexibility of Operation |
|
Hose Burst Valves |
A Safety Feature that Prevents Platform Fall |
|
Marine Potted Switches |
Watertight Switches – Reduces Electrical Failure |
|
Static Wire Position Within Gate Mast |
Stationary Wire Reduces Wire Breakage and Electrical Failure |
|
Lower Hydraulic Pressures |
Reduces Wear on Hydraulic System |
|
Circuit Breaker for All Power Kit Options |
Protects from Electrical Circuit Damage Caused by Current Overload |
|
Safety Cut-Off Switch |
Quick Power Shut-Off Reduces Injuries |
|
Steel Rollers with Greasable Anti-Friction Bearings |
Extends Roller Life |
|
L.E.D. Lights (Stop, Turn, and Tail Lights) |
More Visibility Using Less Energy |
|
Power Close Platform |
Ease of Operation |
|
Smooth Outer Rails with Reinforced Plates |
For Added Strength and Reliability |
|
Maintenance Minder2 |
Measures and Records Lift Gate Operating Data |
|
Pressure Compensated Flow Control |
Steady Hydraulic Pressure for Smooth Operation |
| Model Number | Lifting Capacity | Platform Operating Dimensions | Overall Platform Dimensions | Power Kit | Approximate Weight |
|---|---|---|---|---|---|
|
PLG 1000 |
1,000 lbs |
73.75"Wx36"D |
84"Wx45"D |
Hydraulic Connection Assembly |
1820 lbs |
|
PLG 1010 |
1,000 lbs |
73.75"Wx36"D |
23"D |
11"D |
1820 lbs |
Test
| Model Number | Lifting Capacity | Platform Size | Main Platform | Secondary Platform | Ramp | Approximate Weight |
|---|---|---|---|---|---|---|
|
FXD 4500 |
4,500 lbs |
86"Wx60"D |
36" D |
24" D |
12" Fixed Taper |
1,680 lbs |
|
FXD 4500 |
4,500 lbs |
86"Wx72"D |
42" D |
30" D |
12" Fixed Taper |
1,750 lbs |
|
FXD 4500 |
4,500 lbs |
86" Wx72" D |
36" D |
36" D |
None |
1,850 lbs |
|
FXD 4500 |
4,500 lbs |
86" Wx84" D |
42" D |
42" D |
None |
1,850 lbs |
|
FXD 5500 |
5,500 lbs |
86" Wx60" D |
36" D |
24" D |
12" Fixed Taper |
1,850 lbs |
|
FXD 5500 |
5,500 lbs |
86" Wx72" D |
42" D |
30" D |
12" Fixed |
1,900 lbs |
|
FXD 5500 |
5,500 lbs |
86" Wx72" D |
36" D |
36" D |
None |
1,900 lbs |
|
FXD 5500 |
5,500 lbs |
86" Wx84" D |
42" D |
42" D |
None |
2,000 lbs |
|
FXD 6800 |
6,800 lbs |
86" Wx60" D |
36" D |
42" D |
12" Fixed Taper |
1,900 lbs |
|
FXD 6800 |
6,800 lbs |
86" Wx72" D |
42" D |
30" D |
12" Fixed Taper |
2,120 lbs |
|
FXD 6800 |
6,800 lbs |
86" Wx72" D |
36" D |
36" D |
None |
2,120 lbs |
|
FXD 6800 |
6,800 lbs |
86" Wx84" D |
42" D |
42" D |
None |
2,250 lbs |
| Option Number | OPtion Description |
|---|---|
|
96 |
96" Wide Vehicle Kit with 80" Wide Platform |
|
104 |
Header Kit (Dock Seal) |
|
104-HLK |
Header Light Kit |
|
108 |
Foot Operated Ramp Cart Stop (Fixed Taper Only) |
|
111 |
Additional Circuit Breaker for Supply Link |
|
113 |
16" Aluminum Retention Ramp |
|
113-SPL |
16" Split Aluminum Retention Ramp (Steel Platform Only) |
|
131-3PL |
Plastic Battery Box w/Hold Down Straps (Holds 3 Batteries) |
|
151 |
Bolt-On Installation Kit |
|
151-SS |
Bolt-On Installation Kit – Stainless Steel |
|
245 |
Hose Channel Kit |
|
258 |
Gravity (Automatic) Cart Stop (Available on Steel Platform Only) |
|
272FXD |
Power Unit/Short Frame Option (Use for Limited Install Space) |
|
AL |
Aluminum Platform |
|
GV |
Galvanized (Full Gate) |
|
GVP |
Galvanized (Platform Only) |
|
P46622 |
AGM Battery |
| Option Number | Option Description |
|---|---|
|
123-NG |
Power Kit: 30' “2” Gauge Cable – NO Trailer Plug |
|
136-NG |
Power Kit: 35’ “2” Gauge Cable – NO Trailer Plug |
|
257-NG-30 |
Power Kit: 30' “2” Gauge Cable – Dual Pole with Combo Box (Dual/Single Pole Receptacles) |
|
257-NG-45 |
Power Kit: 45' “2” Gauge Cable – Dual Pole with Combo Box (Dual/Single Pole Receptacles) |
|
257-NG-60 |
Power Kit: 60' “2” Gauge Cable – Dual Pole with Combo Box (Dual/Single Pole Receptacles) |
