LHLP 2500-3500 Hide-A-Way Tuckunder

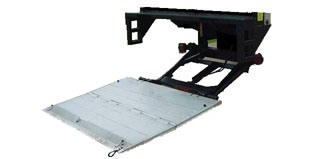

LHLP 2500/3500 Hide-A-Way® Tuckunder lift

Level Ride Aluminum Tuckunder Platform
Floor Heights: 46″ Laden to 58″ Unladen

Standard Features
Power down • Potted toggle switch master control • Greased pivots at platform • Pressure compensated ﬂ ow control • Bolt on power pack enclosure holds pump and motor • Automatic mechanical tilt • Low P.S.I. due to larger piston area • Platform extension for 96”W or 102”W vehicle or threshold mounting tube • Spring assisted opening and closing • Two (2) foot operated cart stops • Aluminum bi-fold platform • Leyman Extreme Shield

Specifications

Options

Power Kits

Specifications

Options

Power Kits

Model Number	Lifting Capacity	Platform Size	Vehicle Width	Approx. Weight
LHLP 3500G	3,500 lbs.	80”W x 60”D	96″ / 102″	795 lbs.
LHLP 2500G	2,500 lbs.	80”W x 60”D	96″ / 102″	770 lbs.

Option Number	Description
107	Emergency hand pump: up/down
111	Circuit breaker for pump motor
131	Battery box with hold down straps (holds two batteries)
131-4	Battery box with hold down straps (holds four batteries)
143	Safety cut off switch
145	Rubber dock bumpers
188	Quick mount system
214	Maintenance Minder2®
219	86” wide platform upcharge (86”W x 60”D)
220	96” ﬂoor extension
221	102” ﬂoor extension
223	Hand held remote control, plugs into receptacle
224	Emergency hand pump
225	Threshold mounting tube
229	I.C.C. bumper D.O.T. approved
233	Heavy duty steps
GV	Galvanized

Power Option Number	Power Option Description	Vehicle Used On
121	Power Kit: 45’ “2” gauge cable – no trailer plug	33′ – 52′
122	Power Kit: 45’ “2” gauge cable – with trailer plug	33′ – 52′
123	Power Kit: 30’ “2” gauge cable – no trailer plug	26′ – 32′
124	Power Kit: 30’ “2” gauge cable – with trailer plug	26′ – 32′
125	Power Kit: 27’ “2” gauge cable – no trailer plug	12’ – 28’ van bodies
136	Power Kit: 35’ “2” gauge cable and material to secure two (2) batteries, Does NOT include trailer plug	26′ – 35′
137	Power Kit: 35’ “2” gauge cable and material to secure two (2) batteries, INCLUDES trailer plug	26′ – 35′
164	Power Kit: 45’ “2” gauge cable Dual Pole ONLY with trailer plug	33’ – 52’
227	Power Kit: 60’ “0” gauge cable – with trailer plug	53′ vehicles
232	Power Kit: 53’ “0” gauge cable – with trailer plug	53′ vehicles
