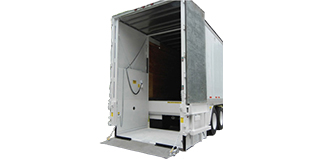

Ley-Vador® Internal Elevator Lift Gate
Internal Lift Gate
Floor Height: 44″ Laden to 56″ Unladen
Standard Features for LEY
Maintenance Minder2® • Power line from battery supply to lift gate • Completely enclosed by overhead or swing doors when in transit • Works at low dock heights • Weather protected • Does not add any length to vehicle • Automatic platform locks • Push button operation • Grease fittings • Built in lights for visibility • Single piece steel platform • LEY4000/6000 Power pack enclosure houses pump, motor and has room for two (2) batteries • LEY10000 Power pack enclosure houses pump and motor, separate box for four (4) batteries
Model Number | Lifting Capacity | Platform Size | Hydraulic cylinders | Ramp | Vehicle Width | Approx. Weight |
LEY 10000 | 10,000 lbs. | 83”W x 76”D | 4 | 24” Flip | 96″ / 102″ | 6,400 lbs. |
LEY 6000 | 6,000 lbs. | 83”W x 76”D | 2 | 24” Flip | 96″ / 102″ | 5,200 lbs. |
LEY 6000 | 6,000 lbs. | 83”W x 60”D | 2 | 24” Flip | 96″ / 102″ | 4,900 lbs. |
LEY 4000 | 4,000 lbs. | 83”W x 60”D | 2 | 24” Flip | 96″ / 102″ | 2,400 lbs. |
LEY 4000 | 4,000 lbs. | 83”W x 45”D | 2 | 24” Flip | 96″ / 102″ | 2,300 lbs. |
Option Number | Description |
102 | 102” wide vehicle kit |
103 | Hand held remote, mounted in truck/trailer |
|
|
|
|
| Additional ramp options |
| Aluminum ramp 6”flat / 24” taper |
| Aluminum ramp 18” flat / 18” taper |
Power Option Number | Power Option Description | Vehicle Used On |
122 | Power Kit: 45’ “0” gauge cable – Single Pole with trailer plug | 33′ – 52′ |
164 | Power Kit: 45’ “0” gauge cable – Dual Pole ONLY with trailer plug | 33’ – 52’ |
|
|
|
| Dual Pole cable with Single Pole and Dual Pole Combo Nose Box also available. |
|
