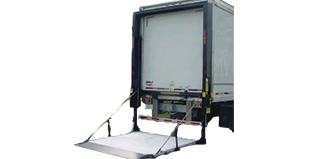

FXD-AL Fold-A-Vador® Rail Gate
Aluminum Platform Rail Gate
Floor Heights: 40″ Laden to 56″ Unladen
Standard Features
Maintenance Minder2® • Power pack enclosure houses pump and motor • Hose burst valves (non-electrical) • Power close platform • Smooth outer rails with reinforced plates • Springs assist opening • Four (4) L.E.D. lights • Two (2) hydraulic cylinders perform the lifting • Four (4) hardened steel rollers with greasable anti-friction bearings • Torsion bars assist opening and closing • Leyman Extreme Shield • Stationary potted marine toggle switch operation
Model Number | Lifting Capacity | Platform Size | Main Platform | Secondary Platform | Ramp | Vehicle Width | Approx. Weight |
FXD 68AL | 6,800 lbs. | 80″W x 84″D | 42″D | 42″D | None | 96″ wide | 1,825 lbs |
FXD 68AL | 6,800 lbs. | 80″W x 72″D | 36″D | 36″D | None | 96″ wide | 1,770 lbs. |
FXD 68AL | 6,800 lbs. | 80″W x 72″D | 42″D | 30″D | 12″ Fixed Taper | 96″ wide | 1,770 lbs. |
FXD 68AL | 6,800 lbs. | 80″W x 60″D | 36″D | 24″D | 12″ Fixed Taper | 96″ wide | 1,600 lbs. |
|
|
|
|
|
|
|
|
FXD 55AL | 5,500 lbs. | 80″W x 84″D | 42″D | 42″D | None | 96″ wide | 1,600 lbs. |
FXD 55AL | 5,500 lbs. | 80″W x 72″D | 36″D | 36″D | None | 96″ wide | 1,575 lbs. |
FXD 55AL | 5,500 lbs. | 80″W x 72″D | 42″D | 30″D | 12″ Fixed Taper | 96″ wide | 1,575 lbs. |
FXD 55AL | 5,500 lbs. | 80″W x 60″D | 36″D | 24″D | 12″ Fixed Taper | 96″ wide | 1,550 lbs. |
|
|
|
|
|
|
|
|
FXD 45AL | 4,500 lbs. | 80″W x 84″D | 42″D | 42″D | None | 96″ wide | 1,525 lbs. |
FXD 45AL | 4,500 lbs. | 80″W x 72″D | 36″D | 36″D | None | 96″ wide | 1,500 lbs. |
FXD 45AL | 4,500 lbs. | 80″W x 72″D | 42″D | 30″D | 12″ Fixed Taper | 96″ wide | 1,500 lbs. |
FXD 45AL | 4,500 lbs. | 80″W x 60″D | 36″D | 24″D | 12″ Fixed Taper | 96″ wide | 1,460 lbs. |
|
|
|
|
|
|
|
|
FXD 35AL | 3,500 lbs. | 80″W x 72″D | 36″D | 36″D | None | 96″ wide | 1,475 lbs. |
FXD 35AL | 3,500 lbs. | 80″W x 72″D | 42″D | 30″D | 12″ Fixed Taper | 96″ wide | 1,475 lbs. |
FXD 35AL | 3,500 lbs. | 80″W x 60″D | 36″D | 24″D | 12″ Fixed Taper | 96″ wide | 1,450 lbs. |
Option Number | Option Description |
102 | 102” wide vehicle kit (platform 86” wide) |
104 | Header Kit (Dock Seal) |
111 | Additional circuit breaker |
113 | 16″ aluminum retention ramp |
131 | Battery Box with hold down straps (holds two batteries) |
131-3PL | Plastic battery box with hold down straps (holds three batteries) |
151 | Bolt-on installation kit (standard steel) |
151-SS | Bolt-on installation kit – Stainless steel |
GV | Galvanized gate |
P46622 | AGM Battery |
Power Option Number | Power Option Description | Vehicle Used On |
121 | Power Kit: 45’ “2” gauge cable – no trailer plug | 33′ – 52′ |
122 | Power Kit: 45’ “2” gauge cable – with trailer plug | 33′ – 52′ |
123 | Power Kit: 30’ “2” gauge cable – no trailer plug | 26′ – 32′ |
124 | Power Kit: 30’ “2” gauge cable – with trailer plug | 26′ – 32′ |
125 | Power Kit: 27′ “2” gauge cable – no trailer plug | 12’ – 28’ van bodies |
136 | Power Kit: 35’ “2” gauge cable – no trailer plug | 26′ – 35′ |
137 | Power Kit: 35’ “2” gauge cable – with trailer plug | 26′ – 35′ |
164 | Power Kit: 45’ “2” gauge cable Dual Pole ONLY with trailer plug | 33’ – 52’ |
227 | Power Kit: 60’ “0” gauge cable – with trailer plug | 53′ vehicles |
232 | Power Kit: 53’ “0” gauge cable – with trailer plug | 53′ vehicles |
