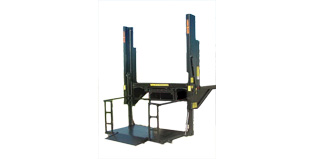

FBG Fold-A-Vador® Rail Gate
Bottle Gas Rail Gate
Floor Heights: 40″ Laden to 60″ Unladen
Standard Features
Maintenance Minder2® • Potted marine toggle switch operation • Grease fittings at rollers • Platform dock level stops
Torsion bars assist opening and closing • Automatic over the road lock • Power pack enclosure houses pump and motor
Power close platform • Four (4) L.E.D. lights • Lowest rail height in the industry • Leyman Extreme Shield
Model Number | Lifting Capacity | Platform size | Ramp | Approx. Weight |
FBG 45RM | 4,500 lbs | 80″W x 42″D | 16″ Steel Flip | 1,480 lbs. |
FBG 45RM | 4,500 lbs | 80″W x 36″D | 16″ Steel Flip | 1,420 lbs. |
FBG 35RM | 3,500 lbs | 80″W x 42″D | 16″ Steel Flip | 1,380 lbs. |
FBG 35RM | 3,500 lbs | 80″W x 36″D | 16″ Steel Flip | 1,300 lbs. |
Option Number | Option Description |
102 | 102” wide vehicle kit (platform 86” wide) |
103 | Handheld remote with storage box |
104 | Header kit (dock seal) |
106 | Special paint color (other than black) |
107 | Emergency hand pump: up/down, fold/unfold |
111 | Circuit breaker for pump motor |
115 | 16” aluminum retention ramp |
119 | Collapsible hand rails |
131 | Battery box with hold down straps (holds two batteries) |
131-4B-CBI | Battery box with hold down straps (holds four batteries) |
142 | Dual power unit with selector switches |
158 | Power down for Fold-A-Vador® |
P46622 | AGM Battery |
Power Option Number | Power Option Description |
136 | Power Kit: 35’ 2-ga. cable and material to secure two (2) batteries, Does NOT include trailer plug |
137 | Power Kit: 35’ 2-ga. cable and material to secure two (2) batteries, INCLUDES trailer plug |
|
|
