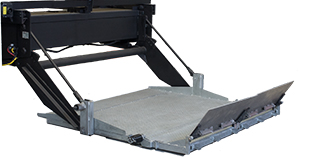

Hide-A-Way®
Trailer Side Lift
Lifting Capacity – 4,500 lbs
• Floor Heights: 48” Laden to 58” Unladen • Designed to Reduce Road Calls
| LPS Standard Features | Benefits |
|---|---|
|
True Level Ride Lift Gate |
Provides a Safer Working Environment for Driver and Freight |
|
Galvanized Gate and Primary Platform, Aluminum secondary Platform & Single Retention Ramp |
Prevents Rust |
|
Power In and Out with Stainless Steel Chain |
Designed to Reduce Road Calls |
|
Flashing Safety Light on End of Platform |
Safety Feature Provides Greater Visibility of Gate |
|
Automatic Over-the-Road Lock |
Safely Secures Lift Gate in Over-the-Road Position |
|
Adjustable to Trailer Dimensions |
Ensures Custom Fit for Side Lift Gate |
|
Accommodates Curb or Street Side
of Trailer Installation |
Flexibility to Meet Your Specific Delivery Requirements |
|
Power Pack Enclosure |
Houses Pump, Motor, and Room for up to Four (4) Batteries* |
|
Pressure Compensated Flow Control |
Steady Hydraulic Pressure for Smooth Operation |
|
Gravity Down |
Reduces Power Usage and Motor Wear |
|
Marine Potted Switches |
Watertight Switches – Reduces Electrical Failure |
|
Spring Assisted Opening and Closing |
Ease of Use and Reduces Physical Effort to Operate |
|
Maintenance Minder2 |
Measures and Records Lift Gate Operating Data |
| Model Number | Lifting Capacity | Platform Size | Main Platform | Secondary Platform | Ramp | Vehicle Width | Approximate Weight |
|---|---|---|---|---|---|---|---|
|
LPS 4500 |
4,500 lbs |
72"Wx68"D |
72"Wx51.5"D |
72"Wx17"D |
15" Deep |
96" and 102" |
1,650 lbs |
| Option Number | OPtion Description |
|---|---|
|
111 |
Additional Circuit Breaker for Supply Line |
|
133 |
Conversion Kit For Mounting to Aluminum Cross Members |
|
134 |
Mud Flap |
|
142 |
Dual Power Unit |
|
154 |
Reflecting Tape |
|
155 |
High Visibility Flashing Safety Lights along Lift Gate Arm, Nose Warning Light |
|
261 |
Emergency Hand Pump |
|
265 |
Power Unit Box Work Light |
|
268 |
Collapsible Safety Hand Rails |
|
270LPS-R1 |
1 Piece Retention Ramp Option for LPS |
|
270LPS-R2 |
2 Piece Retention Ramp Option for LPS |
|
271 |
Plug-In, Hand-Held Remote with Storage Box in Place of Upper Switch |
|
GV |
Galvanized (Full Gate) |
|
P46622 |
AGM Battery |
| Option Number | Option Description |
|---|---|
|
257-NG-30 |
Power Kit: 30' “2” Gauge Cable – Dual Pole with Combo Box (Dual/Single Pole Receptacles) |
|
257-NG-45 |
Power Kit: 45' “2” Gauge Cable – Dual Pole with Combo Box (Dual/Single Pole Receptacles) |
|
257-NG-60 |
Power Kit: 60' “2” Gauge Cable – Dual Pole with Combo Box (Dual/Single Pole Receptacles) |
|
269-2B |
Battery Hold-Down Kit - 2 Batteries for 42, 48, 60, 72, 80 Gate Width |
|
269-3B |
Battery Hold-Down Kit - 3 Batteries for 60, 72, 80 Gate Width |
|
269-4B |
Battery Hold-Down Kit - 4 Batteries for 72, 80 Gate Width |
